FSM2JSMAATR
Manufacturer:
TE Connectivity
Mfr.Part #:
FSM2JSMAATR
Datasheet:
Description:

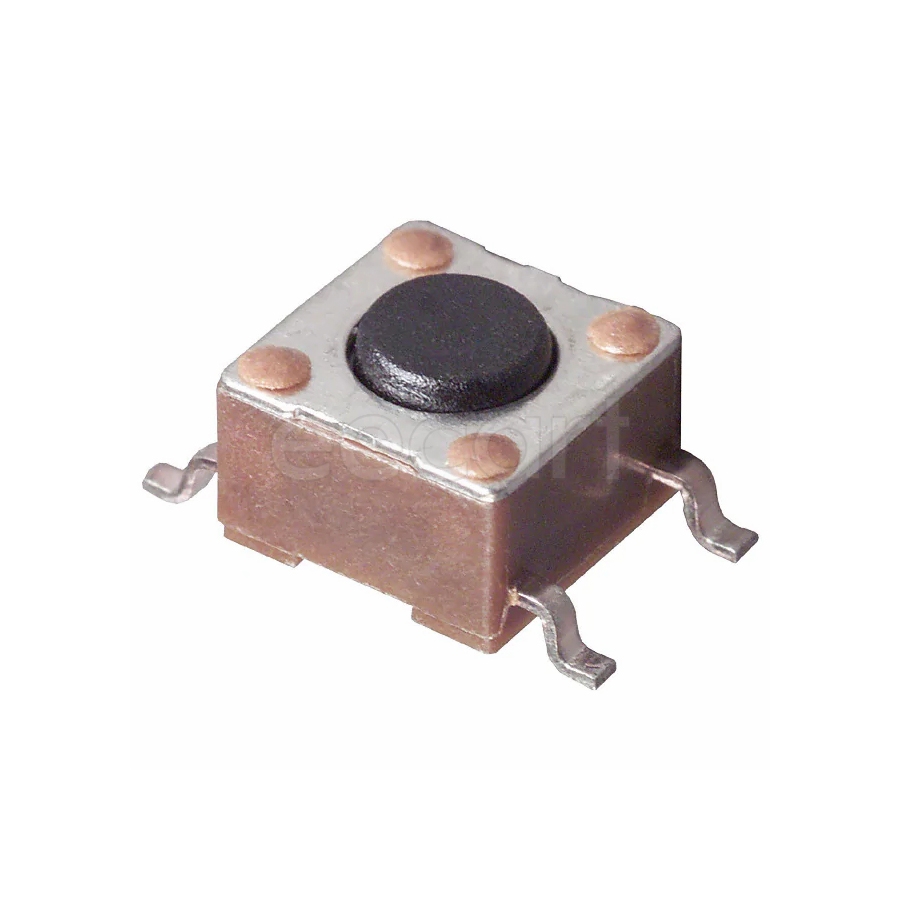

Tactile Switches SMD/SMT SPST-NO Off-Mom 260 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Depth | 10 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Actuator Length | 700 µm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 260 gf |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mounting Direction | Straight |
Stock: 14838
Distributors
pcbx
pcbxUnit Price$0.19407
Ext.Price$0.19407
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19407 | $0.19407 |
| 10 | $0.16757 | $1.67570 |
| 50 | $0.15375 | $7.68750 |
| 100 | $0.14106 | $14.10600 |
| 500 | $0.12140 | $60.70000 |
| 1000 | $0.09233 | $92.33000 |
